M12 A Code
|
Panel Side |
|||
|
Panel Mount Rear Fastened |
Panel Mount Front Fastened |
Panel Mount Rear Fastened |
Panel Mount Front Fastened |
|
Female |
Male |
||
|
|
|
|
|
|
M12A-MN-XXP-FFSH-SR-70000X |
M12A-MX-XXP-FFSH-SF-70000X |
M12A-MN-XXP-MMSH-SR-70000X |
M12A-MX-XXP-MMSH-SF-70000X |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
|||
|
Cable Side |
|||
|
Straight Male |
Straight Female |
Angled Male |
Angled Female |
|
|
|
|
|
|
M12A-MS-XXC-MMMH-SS-7MXXXX |
M12A-MS-XXC-FFMH-SS-7MXXXX |
M12A-MS-XXC-MMMH-SR-7MXXXX |
M12A-MS-XXC-FFMH-SR-7MXXXX |
|
The 3D file is provided only for checking panel size. The Number of contact is for reference only. If you need a 3D file with the correct Number of contact please contact us. |
|||
|
Recommended Panel Cut Out |
|
|
M16 |
PG9 |
|
|
|
|

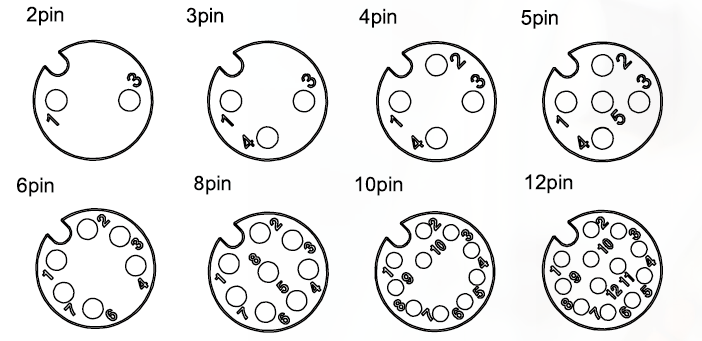

View from termination side |
|
||
|
Number of contacts |
2~5 |
6~8 |
10~12 |
|
AWG |
22 |
24 |
26 |
|
Rated current |
4A |
2A |
1.5A |
|
Rated voltage |
250V(2~4Pin) 60V(5Pin) |
30V |
30V |
|
Rated impulse voltage |
2.5Kv(2~4Pin) 1.5kV(5Pin) |
0.8kV |
0.8kV |
|
Temperature Range (working and storage) |
-40°C~105°C |
||
|
Insulation resistance |
>100MΩ |
||
|
Contact resistance |
≦10mΩ |
||
|
Mating cycles |
100 |
||
|
Locking type |
Screw Locking |
||
|
Degree of protection acc. to IEC 60529 |
IP67 |
||
|
Tightening torque |
5~8 kgf.cm |
||
|
Halogen free |
Optional |
||
|
Flame retardant |
UL94V-0 |
||
|
UV-resistant |
Yes |
||
|
Material (insert) |
Thermoplastic |
||
|
Material (contacts) |
Copper Alloy |
||
|
Surface (contacts) |
Gold plated |
||
|
RoHS |
Compliant |
||
